Multiple Flute (Non CC)

Multiple Flute (Non CC)

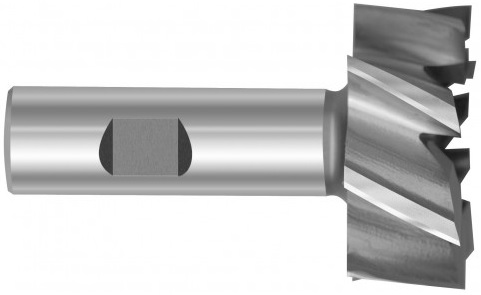

Atlas HSS Bridgeport - Multi Flute

HSS Bridgeport End Mill - Multi Flute

  • TiN coating is used in applications with lower cutting speeds than TiCN and ALTiN but often improves the tool’s lifetime by a factor of three or more. Typically used for in wide range of materials including iron based, hardened steels, and stainless steels.
  • Made in the USA
  • TiCN coating is a general purpose coating that offers improved wear resistance to abrasive, adhesive, or difficult to machine materials such as cast iron, aluminum alloys, steels, copper and more.
  • TiALN is a high performance coating for milling, tapping and drilling in stainless steels, carbon steels, alloy steels, titanium and cast iron. This coating is extremely heat resistant and can be used with or without coolant.

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com
  • Compare SKU Vendor Size (D1) Shank Diameter (D2) Flute Length (L2) Reach (L3) Overall Length (L1) Length Type Corner Radius (R) Included Angle Taper Angle Helix Angle Number of Flutes Weldon Flats Flats Coating In Stock Price Quantity
    A65065 HTC Tool 3/4 1/2 3/4 2-3/4 30° 4 Uncoated Available to Order*
    $29.22
  • A65068 HTC Tool 3/4 1/2 3/4 2-3/4 30° 4 TiN Available to Order*
    $35.26
  • A65066 HTC Tool 3/4 1/2 3/4 2-3/4 30° 4 TiCN Available to Order*
    $38.22
  • A65067 HTC Tool 3/4 1/2 3/4 2-3/4 30° 4 TiALN Available to Order*
    $39.74
  • A65061 HTC Tool 3/4 3/4 1-1/2 3-3/4 30° 6 Uncoated Available to Order*
    $40.94
  • A65064 HTC Tool 3/4 3/4 1-1/2 3-3/4 30° 6 TiN Available to Order*
    $48.01
  • A65062 HTC Tool 3/4 3/4 1-1/2 3-3/4 30° 6 TiCN Available to Order*
    $51.55
  • A65063 HTC Tool 3/4 3/4 1-1/2 3-3/4 30° 6 TiALN Available to Order*
    $53.32
  • A67083 HTC Tool 7/8 1/2 3/4 2-3/4 30° 4 Uncoated Available to Order*
    $36.46
  • A67086 HTC Tool 7/8 1/2 3/4 2-3/4 30° 4 TiN Available to Order*
    $42.47
  • A67084 HTC Tool 7/8 1/2 3/4 2-3/4 30° 4 TiCN Available to Order*
    $45.46
  • A67085 HTC Tool 7/8 1/2 3/4 2-3/4 30° 4 TiALN Available to Order*
    $46.97
  • A60385 HTC Tool 1 1/2 3/4 2-3/4 30° 4 Uncoated Available to Order*
    $40.14
  • A60386 HTC Tool 1 5/8 3/4 2-7/8 30° 4 Uncoated Available to Order*
    $40.14
  • A60390 HTC Tool 1 3/4 3/4 3 30° 4 Uncoated Available to Order*
    $40.14
  • A60389 HTC Tool 1 5/8 3/4 2-7/8 30° 4 TiN Available to Order*
    $52.18
  • A60393 HTC Tool 1 3/4 3/4 3 30° 4 TiN Available to Order*
    $52.18
  • A60396 HTC Tool 1 1/2 3/4 2-3/4 30° 4 TiN Available to Order*
    $50.36
  • A60387 HTC Tool 1 5/8 3/4 2-7/8 30° 4 TiCN Available to Order*
    $58.17
  • A60391 HTC Tool 1 3/4 3/4 3 30° 4 TiCN Available to Order*
    $58.17
  • A60394 HTC Tool 1 1/2 3/4 2-3/4 30° 4 TiCN Available to Order*
    $55.43
  • A60388 HTC Tool 1 5/8 3/4 2-7/8 30° 4 TiALN Available to Order*
    $61.18
  • A60392 HTC Tool 1 3/4 3/4 3 30° 4 TiALN Available to Order*
    $61.18
  • A60395 HTC Tool 1 1/2 3/4 2-3/4 30° 4 TiALN Available to Order*
    $57.96
  • A60381 HTC Tool 1 3/4 1-1/2 3-3/4 30° 6 Uncoated Available to Order*
    $51.85
  • A60384 HTC Tool 1 3/4 1-1/2 3-3/4 30° 6 TiN Available to Order*
    $63.89
  • A60382 HTC Tool 1 3/4 1-1/2 3-3/4 30° 6 TiCN Available to Order*
    $69.91
  • A60383 HTC Tool 1 3/4 1-1/2 3-3/4 30° 6 TiALN Available to Order*
    $72.90
  • A63317 HTC Tool 1-1/8 1/2 3/4 2-3/4 30° 6 Uncoated Available to Order*
    $61.59
  • A63318 HTC Tool 1-1/8 5/8 3/4 2-7/8 30° 6 Uncoated Available to Order*
    $57.78
  • A63322 HTC Tool 1-1/8 3/4 3/4 3 30° 6 Uncoated Available to Order*
    $57.78
  • A63321 HTC Tool 1-1/8 5/8 3/4 2-7/8 30° 6 TiN Available to Order*
    $72.13
  • A63325 HTC Tool 1-1/8 3/4 3/4 3 30° 6 TiN Available to Order*
    $72.13
  • A63328 HTC Tool 1-1/8 1/2 3/4 2-3/4 30° 6 TiN Available to Order*
    $75.94
  • A63319 HTC Tool 1-1/8 5/8 3/4 2-7/8 30° 6 TiCN Available to Order*
    $79.31
  • A63323 HTC Tool 1-1/8 3/4 3/4 3 30° 6 TiCN Available to Order*
    $79.31
  • A63326 HTC Tool 1-1/8 1/2 3/4 2-3/4 30° 6 TiCN Available to Order*
    $83.14
  • A63320 HTC Tool 1-1/8 5/8 3/4 2-7/8 30° 6 TiALN Available to Order*
    $82.88
  • A63324 HTC Tool 1-1/8 3/4 3/4 3 30° 6 TiALN Available to Order*
    $82.88
  • A63327 HTC Tool 1-1/8 1/2 3/4 2-3/4 30° 6 TiALN Available to Order*
    $86.71
  • A63313 HTC Tool 1-1/8 3/4 1-1/2 3-3/4 30° 8 Uncoated Available to Order*
    $63.69
  • A63316 HTC Tool 1-1/8 3/4 1-1/2 3-3/4 30° 8 TiN Available to Order*
    $78.04
  • A63314 HTC Tool 1-1/8 3/4 1-1/2 3-3/4 30° 8 TiCN Available to Order*
    $85.24
  • A63315 HTC Tool 1-1/8 3/4 1-1/2 3-3/4 30° 8 TiALN Available to Order*
    $88.81
  • A62801 HTC Tool 1-1/4 1/2 3/4 2-3/4 30° 6 Uncoated Available to Order*
    $65.93
  • A62802 HTC Tool 1-1/4 5/8 3/4 2-7/8 30° 6 Uncoated Available to Order*
    $62.51
  • A62806 HTC Tool 1-1/4 3/4 3/4 3 30° 6 Uncoated Available to Order*
    $62.51
  • A62805 HTC Tool 1-1/4 5/8 3/4 2-7/8 30° 6 TiN Available to Order*
    $76.85
  • A62809 HTC Tool 1-1/4 3/4 3/4 3 30° 6 TiN Available to Order*
    $76.85
  • A62812 HTC Tool 1-1/4 1/2 3/4 2-3/4 30° 6 TiN Available to Order*
    $80.28
  • A62803 HTC Tool 1-1/4 5/8 3/4 2-7/8 30° 6 TiCN Available to Order*
    $84.05
  • A62807 HTC Tool 1-1/4 3/4 3/4 3 30° 6 TiCN Available to Order*
    $84.05
  • A62810 HTC Tool 1-1/4 1/2 3/4 2-3/4 30° 6 TiCN Available to Order*
    $87.46
  • A62804 HTC Tool 1-1/4 5/8 3/4 2-7/8 30° 6 TiALN Available to Order*
    $87.62
  • A62808 HTC Tool 1-1/4 3/4 3/4 3 30° 6 TiALN Available to Order*
    $87.62
  • A62811 HTC Tool 1-1/4 1/2 3/4 2-3/4 30° 6 TiALN Available to Order*
    $91.03
  • A62797 HTC Tool 1-1/4 3/4 1-1/2 3-3/4 30° 8 Uncoated Available to Order*
    $65.02
  • A62800 HTC Tool 1-1/4 3/4 1-1/2 3-3/4 30° 8 TiN Available to Order*
    $79.36
  • A62798 HTC Tool 1-1/4 3/4 1-1/2 3-3/4 30° 8 TiCN Available to Order*
    $86.55
  • A62799 HTC Tool 1-1/4 3/4 1-1/2 3-3/4 30° 8 TiALN Available to Order*
    $90.12
  • A63433 HTC Tool 1-3/8 5/8 3/4 2-7/8 30° 6 Uncoated Available to Order*
    $65.92
  • A63437 HTC Tool 1-3/8 3/4 3/4 3 30° 6 Uncoated Available to Order*
    $65.92
  • A63436 HTC Tool 1-3/8 5/8 3/4 2-7/8 30° 6 TiN Available to Order*
    $83.33
  • A63440 HTC Tool 1-3/8 3/4 3/4 3 30° 6 TiN Available to Order*
    $83.33
  • A63434 HTC Tool 1-3/8 5/8 3/4 2-7/8 30° 6 TiCN Available to Order*
    $92.04
  • A63438 HTC Tool 1-3/8 3/4 3/4 3 30° 6 TiCN Available to Order*
    $92.04
  • A63435 HTC Tool 1-3/8 5/8 3/4 2-7/8 30° 6 TiALN Available to Order*
    $96.39
  • A63439 HTC Tool 1-3/8 3/4 3/4 3 30° 6 TiALN Available to Order*
    $96.39
  • A62237 HTC Tool 1-1/2 5/8 3/4 2-7/8 30° 6 Uncoated Available to Order*
    $72.64
  • A62241 HTC Tool 1-1/2 3/4 3/4 3 30° 6 Uncoated Available to Order*
    $72.64
  • A62240 HTC Tool 1-1/2 5/8 3/4 2-7/8 30° 6 TiN Available to Order*
    $90.07
  • A62244 HTC Tool 1-1/2 3/4 3/4 3 30° 6 TiN Available to Order*
    $90.07
  • A62238 HTC Tool 1-1/2 5/8 3/4 2-7/8 30° 6 TiCN Available to Order*
    $98.77
  • A62242 HTC Tool 1-1/2 3/4 3/4 3 30° 6 TiCN Available to Order*
    $98.77
  • A62239 HTC Tool 1-1/2 5/8 3/4 2-7/8 30° 6 TiALN Available to Order*
    $103.14
  • A62243 HTC Tool 1-1/2 3/4 3/4 3 30° 6 TiALN Available to Order*
    $103.14
  • A62233 HTC Tool 1-1/2 3/4 2 4-1/2 30° 10 Uncoated Available to Order*
    $110.11
  • A62236 HTC Tool 1-1/2 3/4 2 4-1/2 30° 10 TiN Available to Order*
    $129.25
  • A62234 HTC Tool 1-1/2 3/4 2 4-1/2 30° 10 TiCN Available to Order*
    $138.81
  • A62235 HTC Tool 1-1/2 3/4 2 4-1/2 30° 10 TiALN Available to Order*
    $143.57
  • A63181 HTC Tool 1-3/4 3/4 3/4 3 30° 6 Uncoated Available to Order*
    $88.69
  • A63184 HTC Tool 1-3/4 3/4 3/4 3 30° 6 TiN Available to Order*
    $111.50
  • A63182 HTC Tool 1-3/4 3/4 3/4 3 30° 6 TiCN Available to Order*
    $122.92
  • A63183 HTC Tool 1-3/4 3/4 3/4 3 30° 6 TiALN Available to Order*
    $128.62
  • A63177 HTC Tool 1-3/4 3/4 2 4-1/4 30° 10 Uncoated Available to Order*
    $140.73
  • A63180 HTC Tool 1-3/4 3/4 2 4-1/4 30° 10 TiN Available to Order*
    $164.77
  • A63178 HTC Tool 1-3/4 3/4 2 4-1/4 30° 10 TiCN Available to Order*
    $176.78
  • A63179 HTC Tool 1-3/4 3/4 2 4-1/4 30° 10 TiALN Available to Order*
    $182.77
  • A60909 HTC Tool 2 3/4 3/4 3 30° 8 Uncoated Available to Order*
    $106.12
  • A60912 HTC Tool 2 3/4 3/4 3 30° 8 TiN Available to Order*
    $131.88
  • A60910 HTC Tool 2 3/4 3/4 3 30° 8 TiCN Available to Order*
    $144.76
  • A60911 HTC Tool 2 3/4 3/4 3 30° 8 TiALN Available to Order*
    $151.20
  • A60905 HTC Tool 2 3/4 2 4-1/4 30° 10 Uncoated Available to Order*
    $194.11
  • A60908 HTC Tool 2 3/4 2 4-1/4 30° 10 TiN Available to Order*
    $222.94
  • A60906 HTC Tool 2 3/4 2 4-1/4 30° 10 TiCN Available to Order*
    $237.35
  • A60907 HTC Tool 2 3/4 2 4-1/4 30° 10 TiALN Available to Order*
    $244.54

* Lead times can vary from 1–10 business days. Call (908) 98-ATLAS or email sales@atlascuttingtools.com for details.
