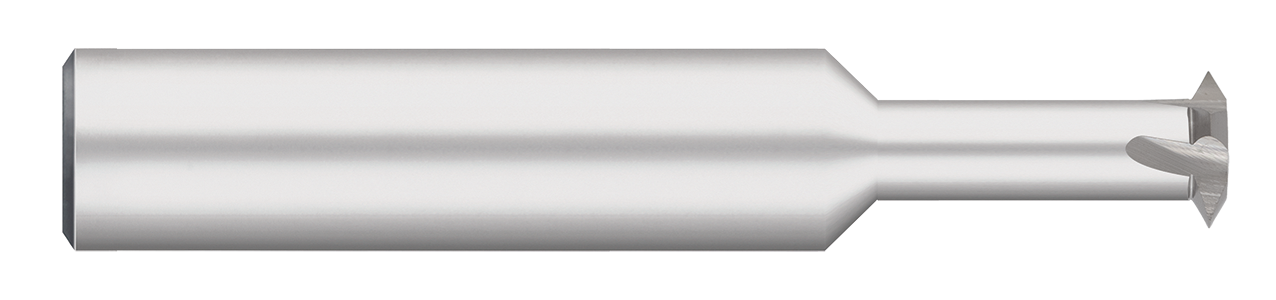

Atlas UN Threads - Single Form

UN Threads - Single Form

  • Sizes ranging from 0.0640 to 0.4950
  • Available in ALTiN and Uncoated finishes

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com

  • Compare SKU Vendor Cutter Diameter Thread Size (D1) Shank Diameter (D2) Thread Length (L2) Overall Length (L1) Thread Type Number of Flutes Coating In Stock Price Quantity
    A78974 ACT 0.0640 2 1/8 5/32 1-1/2 UN Thread 3 Uncoated 36
    $88.39
  • A78975 ACT 0.0720 3 1/8 5/32 1-1/2 UN Thread 3 Uncoated 60
    $88.39
  • A78976 ACT 0.0800 4 1/8 1/8 2 UN Thread 3 Uncoated 60
    $92.81
  • A78977 ACT 0.0800 4 1/8 1/4 2 UN Thread 3 Uncoated 32
    $92.81
  • A78978 ACT 0.0980 (2.5 mm) 6 1/8 1/4 2 UN Thread 4 Uncoated 32
    $89.88
  • A78979 ACT 0.0980 (2.5 mm) 6 1/8 3/8 2 UN Thread 4 Uncoated Available to Order*
    $93.30
  • A78980 ACT 0.1200 8 1/8 5/16 2 UN Thread 4 Uncoated 50
    $89.88
  • A78981 ACT 0.1200 8 1/8 1/2 2 UN Thread 4 Uncoated 22
    $93.30
  • A78982 ACT 0.1380 (3.5 mm) 10 3/16 3/8 2 UN Thread 4 Uncoated 32
    $86.50
  • A78983 ACT 0.1380 (3.5 mm) 10 3/16 5/8 2 UN Thread 4 Uncoated Available to Order*
    $90.63
  • A78984 ACT 0.1600 12 3/16 5/8 2 UN Thread 4 Uncoated 50
    $90.63
  • A78985 ACT 0.1800 1/4 3/16 1/2 2 UN Thread 4 Uncoated 19
    $94.26
  • A78986 ACT 0.1800 1/4 3/16 3/4 2 UN Thread 4 Uncoated Available to Order*
    $96.11
  • A78987 ACT 0.2400 5/16 1/4 1/2 2-1/2 UN Thread 4 Uncoated 49
    $110.75
  • A78988 ACT 0.2400 5/16 1/4 3/4 2-1/2 UN Thread 4 Uncoated 21
    $115.94
  • A78989 ACT 0.3000 3/8 3/8 3/4 2-1/2 UN Thread 4 Uncoated 33
    $137.46
  • A78990 ACT 0.3000 3/8 3/8 1 2-1/2 UN Thread 4 Uncoated 24
    $144.19
  • A78991 ACT 0.3880 1/2 1/2 3/4 3 UN Thread 4 Uncoated 58
    $195.22
  • A78992 ACT 0.3880 1/2 1/2 1-1/4 3 UN Thread 4 Uncoated 13
    $199.67
  • A78993 ACT 0.4950 3/4 1/2 1 3 UN Thread 6 Uncoated 18
    $267.29
  • A78994 ACT 0.4950 3/4 1/2 1-3/8 3 UN Thread 6 Uncoated Available to Order*
    $271.75
  • A78995 ACT 0.0640 2 1/8 5/32 1-1/2 UN Thread 3 ALTiN 15
    $93.59
  • A78996 ACT 0.0720 3 1/8 5/32 1-1/2 UN Thread 3 ALTiN 21
    $93.59
  • A78997 ACT 0.0800 4 1/8 1/8 2 UN Thread 3 ALTiN 27
    $98.21
  • A78998 ACT 0.0800 4 1/8 1/4 2 UN Thread 3 ALTiN 10
    $98.21
  • A78999 ACT 0.0980 (2.5 mm) 6 1/8 1/4 2 UN Thread 4 ALTiN 17
    $95.08
  • A79000 ACT 0.0980 (2.5 mm) 6 1/8 3/8 2 UN Thread 4 ALTiN 3
    $98.50
  • A79001 ACT 0.1200 8 1/8 5/16 2 UN Thread 4 ALTiN 20
    $95.08
  • A79002 ACT 0.1200 8 1/8 1/2 2 UN Thread 4 ALTiN 17
    $98.50
  • A79003 ACT 0.1380 (3.5 mm) 10 3/16 3/8 2 UN Thread 4 ALTiN 8
    $92.65
  • A79004 ACT 0.1380 (3.5 mm) 10 3/16 5/8 2 UN Thread 4 ALTiN 20
    $96.44
  • A79005 ACT 0.1600 12 3/16 5/8 2 UN Thread 4 ALTiN 23
    $96.44
  • A79006 ACT 0.1800 1/4 3/16 1/2 2 UN Thread 4 ALTiN 18
    $100.07
  • A79007 ACT 0.1800 1/4 3/16 3/4 2 UN Thread 4 ALTiN 8
    $102.21
  • A79008 ACT 0.2400 5/16 1/4 1/2 2-1/2 UN Thread 4 ALTiN 21
    $118.49
  • A79009 ACT 0.2400 5/16 1/4 3/4 2-1/2 UN Thread 4 ALTiN 14
    $123.98
  • A79010 ACT 0.3000 3/8 3/8 3/4 2-1/2 UN Thread 4 ALTiN 11
    $148.59
  • A79011 ACT 0.3000 3/8 3/8 1 2-1/2 UN Thread 4 ALTiN 13
    $155.18
  • A79012 ACT 0.3880 1/2 1/2 3/4 3 UN Thread 4 ALTiN 18
    $212.55
  • A79013 ACT 0.3880 1/2 1/2 1-1/4 3 UN Thread 4 ALTiN 13
    $217.69
  • A79014 ACT 0.4950 3/4 1/2 1 3 UN Thread 6 ALTiN 24
    $284.61
  • A79015 ACT 0.4950 3/4 1/2 1-3/8 3 UN Thread 6 ALTiN Available to Order*
    $289.14

* Lead times can vary from 1–10 business days. Call (908) 98-ATLAS or email sales@atlascuttingtools.com for details.
