5 Flute - Radius

5 Flute - Radius

Atlas Cutting Tools stocks USA precision Solid Carbide End Mills. Buy with confidence and at competitive prices along with same day shipping.

Atlas Solid Carbide 5 Flute End Mill Variable Index Corner Radius

Solid Carbide End Mill - 5 Flute - 38° Helix - Variable Index - Corner Radius

  • Variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium.
  • Post polished ALCRO-Max coating increases edge strength and wear resistance
  • Corner Radius for increased edge strength
  • Delivers efficient, chatter-free machining in roughing, profiling, finishing, and slotting applications up to 1x diameter
  • Large core and eccentric relief for improved tool life
  • Solid Carbide, Made in the USA

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com

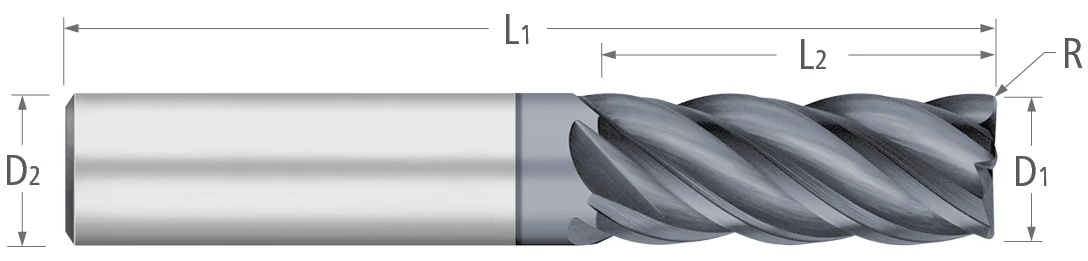

  • Size (D1) Shank Dia (D2) Flute Length (L2) OAL (L1) # of Flutes Coating Corner Radius (R) Weldon Flats In Stock Sku Price Quantity
    1/4 1/4 3/8 2 5 ALCRO-MAX 0.015 NO 100
    A59675
    $26.09
  • 1/4 1/4 3/4 2-1/2 5 ALCRO-MAX 0.015 NO Call
    A59037
    $28.83
  • 1/4 1/4 3/4 2-1/2 5 ALCRO-MAX 0.03 NO 100
    A59038
    $28.83
  • 1/4 1/4 3/4 2-1/2 5 ALCRO-MAX 0.06 NO 89
    A59039
    $28.83
  • 1/4 1/4 1-1/8 3 5 ALCRO-MAX 0.015 NO 44
    A59112
    $32.48
  • 1/4 1/4 1-1/8 3 5 ALCRO-MAX 0.03 NO 100
    A59113
    $32.48
  • 1/4 1/4 1-1/2 4 5 ALCRO-MAX 0.015 NO 100
    A59162
    $39.55
  • 1/4 1/4 1-1/2 4 5 ALCRO-MAX 0.03 NO 59
    A59163
    $39.55
  • 5/16 5/16 7/16 2 5 ALCRO-MAX 0.015 NO 100
    A59676
    $35.06
  • 5/16 5/16 13/16 2-1/2 5 ALCRO-MAX 0.015 NO 9
    A59040
    $37.34
  • 5/16 5/16 13/16 2-1/2 5 ALCRO-MAX 0.03 NO 2
    A59041
    $37.34
  • 5/16 5/16 13/16 2-1/2 5 ALCRO-MAX 0.06 NO 3
    A59042
    $37.34
  • 5/16 5/16 1-1/8 3 5 ALCRO-MAX 0.015 NO 24
    A59114
    $44.28
  • 5/16 5/16 1-1/8 3 5 ALCRO-MAX 0.03 NO 31
    A59115
    $44.28
  • 3/8 3/8 1/2 2 5 ALCRO-MAX 0.015 NO 63
    A59677
    $38.59
  • 3/8 3/8 1 2-1/2 5 ALCRO-MAX 0.015 NO 76
    A59043
    $43.37
  • 3/8 3/8 1 2-1/2 5 ALCRO-MAX 0.03 NO 100
    A59044
    $43.37
  • 3/8 3/8 1 2-1/2 5 ALCRO-MAX 0.06 NO 74
    A59045
    $43.37
  • 3/8 3/8 1-1/4 4 5 ALCRO-MAX 0.03 NO 79
    A59116
    $58.90
  • 3/8 3/8 1-1/4 4 5 ALCRO-MAX 0.06 NO 20
    A59117
    $58.90
  • 3/8 3/8 2 4 5 ALCRO-MAX 0.03 NO 14
    A59164
    $67.00
  • 3/8 3/8 2 4 5 ALCRO-MAX 0.06 NO 15
    A59165
    $67.00
  • 1/2 1/2 5/8 2-1/2 5 ALCRO-MAX 0.03 NO 100
    A59678
    $59.03
  • 1/2 1/2 5/8 2-1/2 5 ALCRO-MAX 0.03 YES 100
    A59681
    $62.35
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.015 NO 100
    A59046
    $69.62
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.03 NO 69
    A59047
    $69.62
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.06 NO 100
    A59048
    $69.62
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.09 NO 100
    A59049
    $69.62
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.12 NO 100
    A59050
    $69.62
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.015 YES Call
    A59068
    $73.44
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.03 YES 82
    A59069
    $73.44
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.06 YES 100
    A59070
    $73.44
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.09 YES 58
    A59071
    $75.44
  • 1/2 1/2 1 3 5 ALCRO-MAX 0.12 YES 17
    A59072
    $73.44
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.015 NO 7
    A59051
    $69.62
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.03 NO 100
    A59052
    $69.62
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.06 NO 100
    A59053
    $69.62
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.09 NO 16
    A59054
    $69.62
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.12 NO 100
    A59055
    $69.62
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.015 YES 100
    A59073
    $73.44
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.03 YES 72
    A59074
    $73.44
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.06 YES 20
    A59075
    $73.44
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.09 YES 10
    A59076
    $75.44
  • 1/2 1/2 1-1/4 3 5 ALCRO-MAX 0.12 YES 16
    A59077
    $73.44
  • 1/2 1/2 2 4 5 ALCRO-MAX 0.03 NO 24
    A59118
    $91.39
  • 1/2 1/2 2 4 5 ALCRO-MAX 0.03 YES 20
    A59126
    $94.88
  • 1/2 1/2 2 4 5 ALCRO-MAX 0.06 NO 16
    A59119
    $91.39
  • 1/2 1/2 2 4 5 ALCRO-MAX 0.06 YES 19
    A59127
    $97.20
  • 1/2 1/2 3 6 5 ALCRO-MAX 0.03 NO 27
    A59166
    $124.87
  • 1/2 1/2 3 6 5 ALCRO-MAX 0.03 YES 68
    A59178
    $130.68
  • 1/2 1/2 3 6 5 ALCRO-MAX 0.06 NO 34
    A59167
    $124.87
  • 1/2 1/2 3 6 5 ALCRO-MAX 0.06 YES 100
    A59179
    $130.68
  • 5/8 5/8 3/4 3 5 ALCRO-MAX 0.03 NO 20
    A59679
    $110.70
  • 5/8 5/8 3/4 3 5 ALCRO-MAX 0.03 YES 15
    A59682
    $114.86
  • 5/8 5/8 1-5/8 3-1/2 5 ALCRO-MAX 0.03 NO Call
    A59056
    $116.73
  • 5/8 5/8 1-5/8 3-1/2 5 ALCRO-MAX 0.06 NO 11
    A59057
    $116.73
  • 5/8 5/8 1-5/8 3-1/2 5 ALCRO-MAX 0.09 NO 30
    A59058
    $116.73
  • 5/8 5/8 1-5/8 3-1/2 5 ALCRO-MAX 0.12 NO 5
    A59059
    $116.73
  • 5/8 5/8 1-5/8 3-1/2 5 ALCRO-MAX 0.03 YES 45
    A59078
    $120.92
  • 5/8 5/8 1-5/8 3-1/2 5 ALCRO-MAX 0.06 YES 10
    A59079
    $120.92
  • 5/8 5/8 1-5/8 3-1/2 5 ALCRO-MAX 0.09 YES 16
    A59080
    $124.20
  • 5/8 5/8 1-5/8 3-1/2 5 ALCRO-MAX 0.12 YES 8
    A59081
    $124.20
  • 5/8 5/8 2-1/4 5 5 ALCRO-MAX 0.03 NO 26
    A59120
    $164.75
  • 5/8 5/8 2-1/4 5 5 ALCRO-MAX 0.06 NO 21
    A59121
    $164.75
  • 5/8 5/8 2-1/4 5 5 ALCRO-MAX 0.03 YES 15
    A59128
    $169.44
  • 5/8 5/8 2-1/4 5 5 ALCRO-MAX 0.06 YES 32
    A59129
    $172.22
  • 5/8 5/8 3 6 5 ALCRO-MAX 0.03 NO 19
    A59168
    $176.00
  • 5/8 5/8 3 6 5 ALCRO-MAX 0.06 NO 17
    A59169
    $176.00
  • 5/8 5/8 3 6 5 ALCRO-MAX 0.03 YES 6
    A59180
    $180.74
  • 5/8 5/8 3 6 5 ALCRO-MAX 0.06 YES 8
    A59181
    $183.48
  • 3/4 3/4 1 3 5 ALCRO-MAX 0.03 NO 14
    A59680
    $145.10
  • 3/4 3/4 1 3 5 ALCRO-MAX 0.03 YES 80
    A59683
    $148.88
  • 3/4 3/4 1-5/8 4 5 ALCRO-MAX 0.03 NO 100
    A59060
    $161.88
  • 3/4 3/4 1-5/8 4 5 ALCRO-MAX 0.06 NO 35
    A59061
    $161.88
  • 3/4 3/4 1-5/8 4 5 ALCRO-MAX 0.09 NO 57
    A59062
    $161.88
  • 3/4 3/4 1-5/8 4 5 ALCRO-MAX 0.12 NO 59
    A59063
    $161.88
  • 3/4 3/4 1-5/8 4 5 ALCRO-MAX 0.03 YES 57
    A59082
    $166.49
  • 3/4 3/4 1-5/8 4 5 ALCRO-MAX 0.06 YES 42
    A59083
    $166.49
  • 3/4 3/4 1-5/8 4 5 ALCRO-MAX 0.09 YES 47
    A59084
    $171.02
  • 3/4 3/4 1-5/8 4 5 ALCRO-MAX 0.12 YES 17
    A59085
    $166.49
  • 3/4 3/4 2-1/4 5 5 ALCRO-MAX 0.03 NO 87
    A59122
    $207.45
  • 3/4 3/4 2-1/4 5 5 ALCRO-MAX 0.06 NO 21
    A59123
    $207.45
  • 3/4 3/4 2-1/4 5 5 ALCRO-MAX 0.03 YES 16
    A59130
    $213.47
  • 3/4 3/4 2-1/4 5 5 ALCRO-MAX 0.06 YES Call
    A59131
    $213.47
  • 3/4 3/4 3 6 5 ALCRO-MAX 0.03 NO 13
    A59170
    $232.33
  • 3/4 3/4 3 6 5 ALCRO-MAX 0.06 NO 20
    A59171
    $232.33
  • 3/4 3/4 3 6 5 ALCRO-MAX 0.03 YES 16
    A59182
    $237.65
  • 3/4 3/4 3 6 5 ALCRO-MAX 0.06 YES 51
    A59183
    $237.65
  • 3/4 3/4 4 7 5 ALCRO-MAX 0.03 NO 24
    A59172
    $380.13
  • 3/4 3/4 4 7 5 ALCRO-MAX 0.06 NO 16
    A59173
    $378.35
  • 3/4 3/4 4 7 5 ALCRO-MAX 0.03 YES 56
    A59184
    $389.27
  • 3/4 3/4 4 7 5 ALCRO-MAX 0.06 YES 17
    A59185
    $387.49
  • 1 1 2 4 5 ALCRO-MAX 0.03 NO 17
    A59064
    $295.56
  • 1 1 2 4 5 ALCRO-MAX 0.06 NO 15
    A59065
    $295.56
  • 1 1 2 4 5 ALCRO-MAX 0.09 NO 17
    A59066
    $295.56
  • 1 1 2 4 5 ALCRO-MAX 0.12 NO 21
    A59067
    $295.56
  • 1 1 2 4 5 ALCRO-MAX 0.03 YES 21
    A59086
    $307.19
  • 1 1 2 4 5 ALCRO-MAX 0.06 YES 20
    A59087
    $301.46
  • 1 1 2 4 5 ALCRO-MAX 0.09 YES 14
    A59088
    $307.19
  • 1 1 2 4 5 ALCRO-MAX 0.12 YES 22
    A59089
    $307.19
