Steam Oxide

Steam Oxide

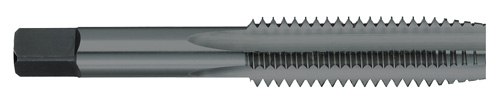

Atlas High Speed Steel (HSS) General Purpose Hand Tap - Steam Oxide Finish

General Purpose - Hand Taps - High Speed Steel - Steam Oxide Finish

  • For optimal results, use a Taper Tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
  • High Speed Steel
  • Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
  • Taps are on blanks that meet ANSI specifications
  • Made in the USA

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com
  • Size Shank Diameter Overall Length H Limit D Limit NC / NF Square Size Square Length Thread Length Number of Lube Grooves Number of Flutes Style Material Coating In Stock Sku Price Quantity
    0-80 0.141 1-5/8 H1 2 Taper HSS STEAM OXIDE 26
    A53863
    $13.07
  • 0-80 0.141 1-5/8 H1 2 Plug HSS STEAM OXIDE 79
    A53865
    $13.07
  • 0-80 0.141 1-5/8 H1 2 Bottoming HSS STEAM OXIDE 15
    A53867
    $13.07
  • 1-64 0.141 1-11/16 H1 2 Taper HSS STEAM OXIDE Call
    A53872
    $7.17
  • 1-64 0.141 1-11/16 H1 2 Plug HSS STEAM OXIDE Call
    A53874
    $7.17
  • 1-64 0.141 1-11/16 H1 2 Bottoming HSS STEAM OXIDE Call
    A53876
    $7.17
  • 2-56 0.141 1-3/4 H2 3 Taper HSS STEAM OXIDE 49
    A53892
    $10.52
  • 2-56 0.141 1-3/4 H2 3 Plug HSS STEAM OXIDE 72
    A53894
    $10.52
  • 2-56 0.141 1-3/4 H2 3 Bottoming HSS STEAM OXIDE 28
    A53896
    $10.52
  • 2-64 0.141 1-3/4 H2 3 Taper HSS STEAM OXIDE Call
    A53899
    $6.64
  • 2-64 0.141 1-3/4 H2 3 Plug HSS STEAM OXIDE Call
    A53901
    $6.64
  • 2-64 0.141 1-3/4 H2 3 Bottoming HSS STEAM OXIDE Call
    A53903
    $6.64
  • 3-48 0.141 1-13/16 H2 3 Taper HSS STEAM OXIDE 22
    A53909
    $8.42
  • 3-48 0.141 1-13/16 H2 3 Plug HSS STEAM OXIDE 20
    A53911
    $8.42
  • 3-48 0.141 1-13/16 H2 3 Bottoming HSS STEAM OXIDE 47
    A53913
    $8.42
  • 4-36 0.141 1-7/8 H2 3 Taper HSS STEAM OXIDE Call
    A53946
    $4.21
  • 4-36 0.141 1-7/8 H2 3 Plug HSS STEAM OXIDE Call
    A53949
    $4.21
  • 4-36 0.141 1-7/8 H2 3 Bottoming HSS STEAM OXIDE Call
    A53952
    $4.21
  • 4-40 0.141 1-7/8 H2 3 Taper HSS STEAM OXIDE 100
    A53927
    $7.01
  • 4-40 0.141 1-7/8 H2 3 Plug HSS STEAM OXIDE 100
    A53930
    $7.01
  • 4-40 0.141 1-7/8 H2 3 Bottoming HSS STEAM OXIDE 100
    A53933
    $7.01
  • 4-48 0.141 1-7/8 H2 3 Taper HSS STEAM OXIDE 100
    A53937
    $7.51
  • 4-48 0.141 1-7/8 H2 3 Plug HSS STEAM OXIDE 71
    A53940
    $7.51
  • 4-48 0.141 1-7/8 H2 3 Bottoming HSS STEAM OXIDE 15
    A53943
    $7.51
  • 5-40 0.141 1-15/16 H2 3 Taper HSS STEAM OXIDE Call
    A53959
    $7.01
  • 5-40 0.141 1-15/16 H2 3 Plug HSS STEAM OXIDE 68
    A53962
    $7.01
  • 5-40 0.141 1-15/16 H2 3 Bottoming HSS STEAM OXIDE 71
    A53965
    $7.01
  • 5-44 0.141 1-15/16 H2 3 Taper HSS STEAM OXIDE Call
    A53969
    $4.22
  • 5-44 0.141 1-15/16 H2 3 Plug HSS STEAM OXIDE Call
    A53972
    $4.22
  • 5-44 0.141 1-15/16 H2 3 Bottoming HSS STEAM OXIDE Call
    A53975
    $4.22
  • 6-32 0.141 2 H2 3 Taper HSS STEAM OXIDE 37
    A53985
    $5.78
  • 6-32 0.141 2 H2 3 Plug HSS STEAM OXIDE 100
    A53988
    $5.78
  • 6-32 0.141 2 H2 3 Bottoming HSS STEAM OXIDE 20
    A53991
    $5.78
  • 6-40 0.141 2 H2 3 Taper HSS STEAM OXIDE 100
    A54004
    $5.78
  • 6-40 0.141 2 H2 3 Plug HSS STEAM OXIDE 15
    A54007
    $5.78
  • 6-40 0.141 2 H2 3 Bottoming HSS STEAM OXIDE 18
    A54010
    $5.78
  • 8-32 0.168 2-1/8 H3 4 Taper HSS STEAM OXIDE 100
    A54032
    $5.74
  • 8-32 0.168 2-1/8 H3 4 Plug HSS STEAM OXIDE 100
    A54035
    $5.74
  • 8-32 0.168 2-1/8 H3 4 Bottoming HSS STEAM OXIDE 100
    A54038
    $5.74
  • 8-36 0.168 2-1/8 H2 4 Taper HSS STEAM OXIDE 80
    A54046
    $5.94
  • 8-36 0.168 2-1/8 H2 4 Plug HSS STEAM OXIDE 100
    A54049
    $5.94
  • 8-36 0.168 2-1/8 H2 4 Bottoming HSS STEAM OXIDE 19
    A54052
    $5.94
  • 10-24 0.194 2-3/8 H3 4 Taper HSS STEAM OXIDE 13
    A54071
    $5.94
  • 10-24 0.194 2-3/8 H3 4 Plug HSS STEAM OXIDE 100
    A54074
    $5.94
  • 10-24 0.194 2-3/8 H3 4 Bottoming HSS STEAM OXIDE 100
    A54077
    $5.94
  • 10-32 0.194 2-3/8 H3 4 Taper HSS STEAM OXIDE 12
    A54103
    $5.94
  • 10-32 0.194 2-3/8 H3 4 Plug HSS STEAM OXIDE 32
    A54106
    $5.94
  • 10-32 0.194 2-3/8 H3 4 Bottoming HSS STEAM OXIDE 19
    A54109
    $5.94
  • 12-24 0.22 2-3/8 H3 4 Taper HSS STEAM OXIDE 77
    A54116
    $6.23
  • 12-24 0.22 2-3/8 H3 4 Plug HSS STEAM OXIDE 100
    A54119
    $6.23
  • 12-24 0.22 2-3/8 H3 4 Bottoming HSS STEAM OXIDE 29
    A54122
    $6.23
  • 12-28 0.22 2-3/8 H3 4 Taper HSS STEAM OXIDE 70
    A54126
    $6.89
  • 12-28 0.22 2-3/8 H3 4 Plug HSS STEAM OXIDE 25
    A54129
    $6.89
  • 12-28 0.22 2-3/8 H3 4 Bottoming HSS STEAM OXIDE 16
    A54132
    $6.89
  • 1/4-20 0.255 2-1/2 H3 4 Taper HSS STEAM OXIDE 100
    A54149
    $6.35
  • 1/4-20 0.255 2-1/2 H3 4 Plug HSS STEAM OXIDE 100
    A54152
    $6.35
  • 1/4-20 0.255 2-1/2 H3 4 Bottoming HSS STEAM OXIDE 100
    A54155
    $6.35
  • 1/4-28 0.255 2-1/2 H3 4 Taper HSS STEAM OXIDE 64
    A54170
    $6.35
  • 1/4-28 0.255 2-1/2 H3 4 Plug HSS STEAM OXIDE 83
    A54173
    $6.35
  • 1/4-28 0.255 2-1/2 H3 4 Bottoming HSS STEAM OXIDE 100
    A54176
    $6.35
  • 5/16-18 0.318 2-23/32 H3 4 Taper HSS STEAM OXIDE 72
    A54192
    $7.80
  • 5/16-18 0.318 2-23/32 H3 4 Plug HSS STEAM OXIDE 29
    A54195
    $7.80
  • 5/16-18 0.318 2-23/32 H3 4 Bottoming HSS STEAM OXIDE 86
    A54198
    $7.80
  • 5/16-20 0.318 2-23/32 H3 4 Taper HSS STEAM OXIDE 100
    A54212
    $7.80
  • 5/16-20 0.318 2-23/32 H3 4 Plug HSS STEAM OXIDE 100
    A54215
    $7.80
  • 5/16-20 0.318 2-23/32 H3 4 Bottoming HSS STEAM OXIDE 100
    A54218
    $7.80
  • 3/8-16 0.381 2-15/16 H3 4 Taper HSS STEAM OXIDE 100
    A54232
    $8.87
  • 3/8-16 0.381 2-15/16 H3 4 Plug HSS STEAM OXIDE 40
    A54235
    $8.87
  • 3/8-16 0.381 2-15/16 H3 4 Bottoming HSS STEAM OXIDE 83
    A54238
    $8.87
  • 3/8-24 0.381 2-15/16 H3 4 Taper HSS STEAM OXIDE 100
    A54252
    $8.87
  • 3/8-24 0.381 2-15/16 H3 4 Plug HSS STEAM OXIDE 87
    A54255
    $8.87
  • 3/8-24 0.381 2-15/16 H3 4 Bottoming HSS STEAM OXIDE 59
    A54258
    $8.87
  • 7/16-14 0.323 3-5/32 H3 4 Taper HSS STEAM OXIDE 31
    A54268
    $15.26
  • 7/16-14 0.323 3-5/32 H3 4 Plug HSS STEAM OXIDE 24
    A54271
    $15.26
  • 7/16-14 0.323 3-5/32 H3 4 Bottoming HSS STEAM OXIDE 19
    A54274
    $15.26
  • 7/16-20 0.323 3-5/32 H3 4 Taper HSS STEAM OXIDE 38
    A54284
    $15.26
  • 7/16-20 0.323 3-5/32 H3 4 Plug HSS STEAM OXIDE 21
    A54287
    $15.26
  • 7/16-20 0.323 3-5/32 H3 4 Bottoming HSS STEAM OXIDE 62
    A54290
    $15.26
  • 1/2-13 0.367 3-3/8 H3 4 Taper HSS STEAM OXIDE 100
    A54301
    $15.84
  • 1/2-13 0.367 3-3/8 H3 4 Plug HSS STEAM OXIDE 37
    A54304
    $15.84
  • 1/2-13 0.367 3-3/8 H3 4 Bottoming HSS STEAM OXIDE 82
    A54307
    $15.84
  • 1/2-20 0.367 3-3/8 H3 4 Taper HSS STEAM OXIDE 16
    A54318
    $17.90
  • 1/2-20 0.367 3-3/8 H3 4 Plug HSS STEAM OXIDE 30
    A54321
    $17.90
  • 1/2-20 0.367 3-3/8 H3 4 Bottoming HSS STEAM OXIDE 55
    A54324
    $17.90
  • 9/16-12 0.429 3-19/32 H3 4 Taper HSS STEAM OXIDE 20
    A54330
    $26.39
  • 9/16-12 0.429 3-19/32 H3 4 Plug HSS STEAM OXIDE 15
    A54333
    $26.39
  • 9/16-12 0.429 3-19/32 H3 4 Bottoming HSS STEAM OXIDE 41
    A54336
    $26.39
  • 9/16-18 0.429 3-19/32 H3 4 Taper HSS STEAM OXIDE 44
    A54342
    $26.39
  • 9/16-18 0.429 3-19/32 H3 4 Plug HSS STEAM OXIDE 15
    A54345
    $26.39
  • 9/16-18 0.429 3-19/32 H3 4 Bottoming HSS STEAM OXIDE 20
    A54348
    $26.39
  • 5/8-11 0.48 3-13/16 H3 4 Taper HSS STEAM OXIDE 51
    A54355
    $31.17
  • 5/8-11 0.48 3-13/16 H3 4 Plug HSS STEAM OXIDE 39
    A54358
    $31.17
  • 5/8-11 0.48 3-13/16 H3 4 Bottoming HSS STEAM OXIDE 33
    A54361
    $31.17
  • 5/8-18 0.48 3-13/16 H3 4 Taper HSS STEAM OXIDE 56
    A54369
    $31.17
  • 5/8-18 0.48 3-13/16 H3 4 Plug HSS STEAM OXIDE 13
    A54372
    $31.17
  • 5/8-18 0.48 3-13/16 H3 4 Bottoming HSS STEAM OXIDE 19
    A54375
    $31.17
  • 11/16-11 0.542 4-1/32 H3 4 Taper HSS STEAM OXIDE Call
    A54380
    $21.22
  • 11/16-11 0.542 4-1/32 H3 4 Plug HSS STEAM OXIDE Call
    A54383
    $21.22
  • 11/16-11 0.542 4-1/32 H3 4 Bottoming HSS STEAM OXIDE Call
    A54386
    $21.22
  • 11/16-16 0.542 4-1/32 H3 4 Taper HSS STEAM OXIDE Call
    A54389
    $21.22
