Atlas Solid Carbide 6 Flute End Mill

Solid Carbide End Mill - 6 Flute - 30° Helix - Fractional

  • Offered in stub, regular, long, and
    extra long length styles
  • TiN coating is used in applications with lower cutting speeds than TiCN and ALTiN but often improves the tool’s lifetime by a factor of three or more. Typically used for in wide range of materials including iron based, hardened steels, and stainless steels.
  • Made in the USA
  • TiCN coating is a general purpose coating that offers improved wear resistance to abrasive, adhesive, or difficult to machine materials such as cast iron, aluminum alloys, steels, copper and more.
  • ALTIN is a high performance coating for milling, tapping and drilling in stainless steels, carbon steels, alloy steels, titanium and cast iron. This coating is extremely heat resistant and can be used with or without coolant.

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com

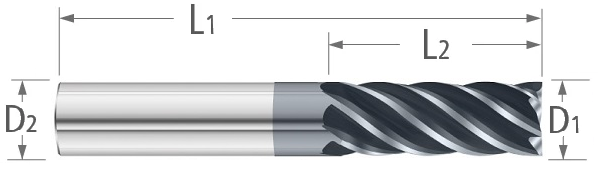

  • Compare SKU Vendor Size (D1) Shank Diameter (D2) Flute Length (L2) Reach (L3) Overall Length (L1) Length Type Corner Radius (R) Included Angle Taper Angle Helix Angle Number of Flutes Weldon Flats Flats Coating In Stock Price Quantity
    A70555 HTC Tool 1/8 1/8 1/2 1-1/2 30° 6 Uncoated Call to order
    $4.74
  • A70567 HTC Tool 1/8 1/8 1/2 1-1/2 30° 6 ALTiN Call to order
    $6.61
  • A70556 HTC Tool 3/16 3/16 5/8 2 30° 6 Uncoated Call to order
    $9.66
  • A70568 HTC Tool 3/16 3/16 5/8 2 30° 6 ALTiN Call to order
    $12.39
  • A70557 HTC Tool 1/4 1/4 3/4 2-1/2 30° 6 Uncoated Call to order
    $10.62
  • A70569 HTC Tool 1/4 1/4 3/4 2-1/2 30° 6 ALTiN Call to order
    $15.52
  • A70558 HTC Tool 5/16 5/16 7/8 2-1/2 30° 6 Uncoated Call to order
    $12.81
  • A70570 HTC Tool 5/16 5/16 7/8 2-1/2 30° 6 ALTiN Call to order
    $19.72
  • A70559 HTC Tool 3/8 3/8 1 2-1/2 30° 6 Uncoated Call to order
    $16.08
  • A70571 HTC Tool 3/8 3/8 1 2-1/2 30° 6 ALTiN Call to order
    $22.96
  • A70560 HTC Tool 7/16 7/16 1 2-1/4 30° 6 Uncoated Call to order
    $23.57
  • A70572 HTC Tool 7/16 7/16 1 2-1/4 30° 6 ALTiN Call to order
    $33.42
  • A70561 HTC Tool 1/2 1/2 1 3 30° 6 Uncoated Call to order
    $30.03
  • A70573 HTC Tool 1/2 1/2 1 3 30° 6 ALTiN Call to order
    $39.89
  • A70562 HTC Tool 9/16 5/8 1-1/4 3-1/2 30° 6 Uncoated Call to order
    $55.14
  • A70574 HTC Tool 9/16 5/8 1-1/4 3-1/2 30° 6 ALTiN Call to order
    $70.49
  • A70563 HTC Tool 5/8 5/8 1-1/4 3-1/2 30° 6 Uncoated Call to order
    $57.54
  • A70575 HTC Tool 5/8 5/8 1-1/4 3-1/2 30° 6 ALTiN Call to order
    $72.92
  • A70564 HTC Tool 3/4 3/4 1-1/2 4 30° 6 Uncoated Call to order
    $105.42
  • A70576 HTC Tool 3/4 3/4 1-1/2 4 30° 6 ALTiN Call to order
    $128.83
  • A70565 HTC Tool 7/8 7/8 1-1/2 4 30° 6 Uncoated Call to order
    $182.00
  • A70577 HTC Tool 7/8 7/8 1-1/2 4 30° 6 ALTiN Call to order
    $222.98
  • A70566 HTC Tool 1 1 1-1/2 4 30° 6 Uncoated Call to order
    $187.60
  • A70578 HTC Tool 1 1 1-1/2 4 30° 6 ALTiN Call to order
    $228.54
