Metric - Square End

Metric - Square End

Atlas Cutting Tools stocks USA precision Solid Carbide End Mills. Buy with confidence and at competitive prices along with same day shipping.

Atlas Solid Carbide 3 Flute End Mill

Solid Carbide End Mill - 3 Flute - 30° Helix - Metric

  • Offered in stub, regular, long, and
    extra long length styles
  • TiN coating is used in applications with lower cutting speeds than TiCN and ALTiN but often improves the tool’s lifetime by a factor of three or more. Typically used for in wide range of materials including iron based, hardened steels, and stainless steels.
  • Made in the USA
  • TiCN coating is a general purpose coating that offers improved wear resistance to abrasive, adhesive, or difficult to machine materials such as cast iron, aluminum alloys, steels, copper and more.
  • ALTIN is a high performance coating for milling, tapping and drilling in stainless steels, carbon steels, alloy steels, titanium and cast iron. This coating is extremely heat resistant and can be used with or without coolant.

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com

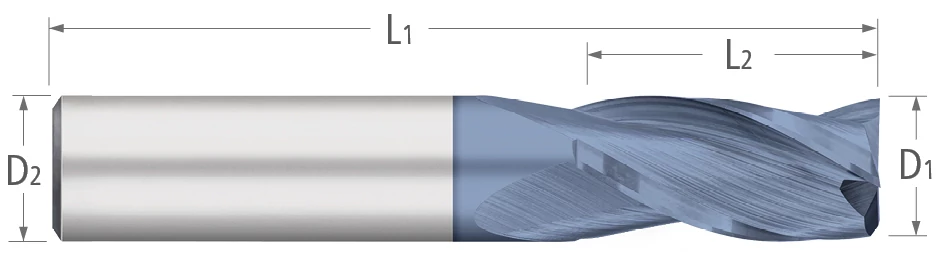

  • Size (D1) Shank Dia (D2) Flute Length (L2) OAL (L1) # of Flutes Coating In Stock Sku Price Quantity
    1MM 1MM 3MM 38MM 3 Uncoated Call
    A69929
    $6.96
  • 1MM 1MM 3MM 38MM 3 TiN Call
    A69973
    $7.78
  • 1MM 1MM 3MM 38MM 3 TiCN Call
    A69951
    $8.48
  • 1MM 1MM 3MM 38MM 3 ALTiN Call
    A69907
    $8.56
  • 1.5MM 1.5MM 5MM 38MM 3 Uncoated Call
    A69930
    $6.89
  • 1.5MM 1.5MM 5MM 38MM 3 TiN Call
    A69974
    $7.78
  • 1.5MM 1.5MM 5MM 38MM 3 TiCN Call
    A69952
    $8.48
  • 1.5MM 1.5MM 5MM 38MM 3 ALTiN Call
    A69908
    $8.56
  • 2MM 2MM 6MM 38MM 3 Uncoated Call
    A69931
    $5.54
  • 2MM 2MM 6MM 38MM 3 TiN Call
    A69975
    $6.33
  • 2MM 2MM 6MM 38MM 3 TiCN Call
    A69953
    $6.90
  • 2MM 2MM 6MM 38MM 3 ALTiN Call
    A69909
    $6.96
  • 2.5MM 2.5MM 7MM 38MM 3 Uncoated Call
    A69932
    $5.54
  • 2.5MM 2.5MM 7MM 38MM 3 TiN Call
    A69976
    $6.33
  • 2.5MM 2.5MM 7MM 38MM 3 TiCN Call
    A69954
    $6.90
  • 2.5MM 2.5MM 7MM 38MM 3 ALTiN Call
    A69910
    $6.96
  • 3MM 3MM 12MM 38MM 3 Uncoated Call
    A69933
    $4.28
  • 3MM 3MM 12MM 38MM 3 TiN Call
    A69977
    $5.15
  • 3MM 3MM 12MM 38MM 3 TiCN Call
    A69955
    $5.61
  • 3MM 3MM 12MM 38MM 3 ALTiN Call
    A69911
    $5.67
  • 3.5MM 3.5MM 12MM 50MM 3 Uncoated Call
    A69934
    $7.54
  • 3.5MM 3.5MM 12MM 50MM 3 TiN Call
    A69978
    $8.21
  • 3.5MM 3.5MM 12MM 50MM 3 TiCN Call
    A69956
    $8.95
  • 3.5MM 3.5MM 12MM 50MM 3 ALTiN Call
    A69912
    $9.03
  • 4MM 4MM 14MM 50MM 3 Uncoated Call
    A69935
    $7.24
  • 4MM 4MM 14MM 50MM 3 TiN Call
    A69979
    $8.06
  • 4MM 4MM 14MM 50MM 3 TiCN Call
    A69957
    $8.79
  • 4MM 4MM 14MM 50MM 3 ALTiN Call
    A69913
    $8.86
  • 4.5MM 4.5MM 14MM 50MM 3 Uncoated Call
    A69936
    $7.54
  • 4.5MM 4.5MM 14MM 50MM 3 TiN Call
    A69980
    $8.43
  • 4.5MM 4.5MM 14MM 50MM 3 TiCN Call
    A69958
    $9.19
  • 4.5MM 4.5MM 14MM 50MM 3 ALTiN Call
    A69914
    $9.27
  • 5MM 5MM 16MM 50MM 3 Uncoated Call
    A69937
    $8.13
  • 5MM 5MM 16MM 50MM 3 TiN Call
    A69981
    $8.89
  • 5MM 5MM 16MM 50MM 3 TiCN Call
    A69959
    $9.69
  • 5MM 5MM 16MM 50MM 3 ALTiN Call
    A69915
    $9.78
  • 6MM 6MM 19MM 63MM 3 Uncoated Call
    A69938
    $7.98
  • 6MM 6MM 19MM 63MM 3 TiN Call
    A69982
    $8.94
  • 6MM 6MM 19MM 63MM 3 TiCN Call
    A69960
    $9.74
  • 6MM 6MM 19MM 63MM 3 ALTiN Call
    A69916
    $9.84
  • 7MM 7MM 19MM 63MM 3 Uncoated Call
    A69939
    $11.34
  • 7MM 7MM 19MM 63MM 3 TiN Call
    A69983
    $11.99
  • 7MM 7MM 19MM 63MM 3 TiCN Call
    A69961
    $13.07
  • 7MM 7MM 19MM 63MM 3 ALTiN Call
    A69917
    $13.19
  • 8MM 8MM 19MM 63MM 3 Uncoated Call
    A69940
    $10.50
  • 8MM 8MM 19MM 63MM 3 TiN Call
    A69984
    $11.67
  • 8MM 8MM 19MM 63MM 3 TiCN Call
    A69962
    $12.72
  • 8MM 8MM 19MM 63MM 3 ALTiN Call
    A69918
    $12.84
  • 9MM 9MM 22MM 70MM 3 Uncoated Call
    A69941
    $18.85
  • 9MM 9MM 22MM 70MM 3 TiN Call
    A69985
    $20.10
  • 9MM 9MM 22MM 70MM 3 TiCN Call
    A69963
    $21.92
  • 9MM 9MM 22MM 70MM 3 ALTiN Call
    A69919
    $22.13
  • 10MM 10MM 22MM 70MM 3 Uncoated Call
    A69942
    $16.63
  • 10MM 10MM 22MM 70MM 3 TiN Call
    A69986
    $18.25
  • 10MM 10MM 22MM 70MM 3 TiCN Call
    A69964
    $19.89
  • 10MM 10MM 22MM 70MM 3 ALTiN Call
    A69920
    $20.08
  • 11MM 11MM 25MM 70MM 3 Uncoated Call
    A69943
    $25.13
  • 11MM 11MM 25MM 70MM 3 TiN Call
    A69987
    $26.85
  • 11MM 11MM 25MM 70MM 3 TiCN Call
    A69965
    $29.27
  • 11MM 11MM 25MM 70MM 3 ALTiN Call
    A69921
    $29.54
  • 12MM 12MM 25MM 75MM 3 Uncoated Call
    A69944
    $23.65
  • 12MM 12MM 25MM 75MM 3 TiN Call
    A69988
    $23.35
  • 12MM 12MM 25MM 75MM 3 TiCN Call
    A69966
    $25.46
  • 12MM 12MM 25MM 75MM 3 ALTiN Call
    A69922
    $25.70
  • 13MM 13MM 30MM 88MM 3 ALTiN 7
    A71486
    $45.40
  • 14MM 14MM 30MM 88MM 3 Uncoated Call
    A69945
    $38.81
  • 14MM 14MM 30MM 88MM 3 TiN Call
    A69989
    $40.45
  • 14MM 14MM 30MM 88MM 3 TiCN Call
    A69967
    $44.09
  • 14MM 14MM 30MM 88MM 3 ALTiN Call
    A69923
    $44.49
  • 16MM 16MM 32MM 88MM 3 Uncoated Call
    A69946
    $51.74
  • 16MM 16MM 32MM 88MM 3 TiN Call
    A69990
    $53.80
  • 16MM 16MM 32MM 88MM 3 TiCN Call
    A69968
    $58.65
  • 16MM 16MM 32MM 88MM 3 ALTiN Call
    A69924
    $59.19
  • 18MM 18MM 36MM 100MM 3 Uncoated Call
    A69947
    $59.14
  • 18MM 18MM 36MM 100MM 3 TiN Call
    A69991
    $62.24
  • 18MM 18MM 36MM 100MM 3 TiCN Call
    A69969
    $67.84
  • 18MM 18MM 36MM 100MM 3 ALTiN Call
    A69925
    $68.46
  • 20MM 20MM 38MM 100MM 3 Uncoated Call
    A69948
    $70.96
  • 20MM 20MM 38MM 100MM 3 TiN Call
    A69992
    $74.06
  • 20MM 20MM 38MM 100MM 3 TiCN Call
    A69970
    $80.72
  • 20MM 20MM 38MM 100MM 3 ALTiN Call
    A69926
    $81.47
  • 22MM 22MM 38MM 100MM 3 Uncoated Call
    A69949
    $87.23
  • 22MM 22MM 38MM 100MM 3 TiN Call
    A69993
    $90.71
  • 22MM 22MM 38MM 100MM 3 TiCN Call
    A69971
    $98.36
  • 22MM 22MM 38MM 100MM 3 ALTiN Call
    A69927
    $99.78
  • 25MM 25MM 38MM 100MM 3 Uncoated Call
    A69950
    $102.48
  • 25MM 25MM 38MM 100MM 3 TiN Call
    A69994
    $106.15
  • 25MM 25MM 38MM 100MM 3 TiCN Call
    A69972
    $115.44
  • 25MM 25MM 38MM 100MM 3 ALTiN Call
    A69928
    $116.77
