4 Flute

4 Flute

Atlas Cutting Tools stocks USA precision Solid Carbide Ball Mills. Buy with confidence and at competitive prices along with same day shipping.

Atlas Solid Carbide 4 Flute Ball Mill Micro

Solid Carbide Ball Mill - 4 Flute - 30° Helix - Micro Milling

  • Offered in stub & regular length styles
  • Made in the USA
  • ALTIN is a high performance coating for milling, tapping and drilling in stainless steels, carbon steels, alloy steels, titanium and cast iron. This coating is extremely heat resistant and can be used with or without coolant.

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com

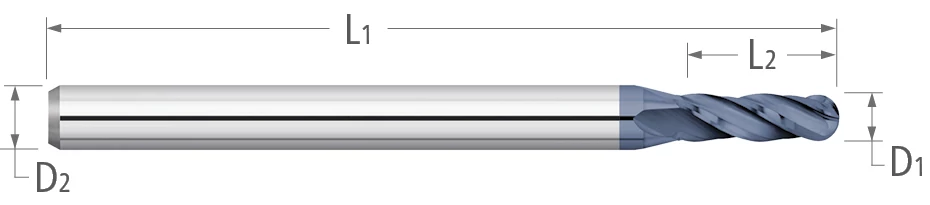

  • Compare SKU Vendor Size (D1) Shank Diameter (D2) Flute Length (L2) Reach (L3) Overall Length (L1) Length Type Corner Radius (R) Included Angle Taper Angle Helix Angle Number of Flutes Weldon Flats Flats Coating In Stock Price Quantity
    A56597 ACT 0.01 0.125 0.015 1-1/2 30° 4 Uncoated 100
    $44.16
  • A56621 ACT 0.01 0.125 0.015 1-1/2 30° 4 ALTiN 7
    $57.15
  • A49666 ACT 0.01 0.125 0.03 1-1/2 30° 4 Uncoated 63
    $43.87
  • A56964 ACT 0.01 0.125 0.03 1-1/2 30° 4 ALTiN 36
    $49.73
  • A49667 ACT 0.011 0.125 0.033 1-1/2 30° 4 Uncoated 14
    $28.70
  • A56965 ACT 0.011 0.125 0.033 1-1/2 30° 4 ALTiN 1
    $32.25
  • A49668 ACT 0.012 0.125 0.036 1-1/2 30° 4 Uncoated 41
    $39.26
  • A56966 ACT 0.012 0.125 0.036 1-1/2 30° 4 ALTiN 8
    $44.08
  • A56967 ACT 0.013 0.125 0.039 1-1/2 30° 4 ALTiN 20
    $37.61
  • A49670 ACT 0.014 0.125 0.042 1-1/2 30° 4 Uncoated 18
    $23.59
  • A56968 ACT 0.014 0.125 0.042 1-1/2 30° 4 ALTiN 10
    $27.18
  • A56598 ACT 0.015 0.125 0.023 1-1/2 30° 4 Uncoated 60
    $27.38
  • A56622 ACT 0.015 0.125 0.023 1-1/2 30° 4 ALTiN 10
    $35.75
  • A49671 ACT 0.015 0.125 0.045 1-1/2 30° 4 Uncoated 100
    $27.38
  • A56969 ACT 0.015 0.125 0.045 1-1/2 30° 4 ALTiN 60
    $32.58
  • A49672 ACT 0.016 0.125 0.048 1-1/2 30° 4 Uncoated 31
    $27.38
  • A56970 ACT 0.016 0.125 0.048 1-1/2 30° 4 ALTiN 22
    $32.58
  • A49674 ACT 0.018 0.125 0.054 1-1/2 30° 4 Uncoated 81
    $19.88
  • A56972 ACT 0.018 0.125 0.054 1-1/2 30° 4 ALTiN 4
    $32.25
  • A49675 ACT 0.019 0.125 0.057 1-1/2 30° 4 Uncoated 100
    $20.04
  • A56973 ACT 0.019 0.125 0.057 1-1/2 30° 4 ALTiN 24
    $32.49
  • A56599 ACT 0.02 0.125 0.03 1-1/2 30° 4 Uncoated 100
    $25.03
  • A56623 ACT 0.02 0.125 0.03 1-1/2 30° 4 ALTiN 100
    $32.54
  • A49676 ACT 0.02 0.125 0.06 1-1/2 30° 4 Uncoated 100
    $25.03
  • A56974 ACT 0.02 0.125 0.06 1-1/2 30° 4 ALTiN 100
    $29.94
  • A49677 ACT 0.021 0.125 0.063 1-1/2 30° 4 Uncoated 40
    $18.15
  • A56975 ACT 0.021 0.125 0.063 1-1/2 30° 4 ALTiN 9
    $30.06
  • A49678 ACT 0.022 0.125 0.066 1-1/2 30° 4 Uncoated 22
    $18.02
  • A56976 ACT 0.022 0.125 0.066 1-1/2 30° 4 ALTiN 15
    $29.77
  • A49679 ACT 0.023 0.125 0.069 1-1/2 30° 4 Uncoated 100
    $18.15
  • A56977 ACT 0.023 0.125 0.069 1-1/2 30° 4 ALTiN 22
    $29.90
  • A49680 ACT 0.024 0.125 0.072 1-1/2 30° 4 Uncoated 100
    $25.03
  • A56978 ACT 0.024 0.125 0.072 1-1/2 30° 4 ALTiN 17
    $29.94
  • A56600 ACT 0.025 0.125 0.038 1-1/2 30° 4 Uncoated 100
    $25.03
  • A56624 ACT 0.025 0.125 0.038 1-1/2 30° 4 ALTiN 21
    $32.54
  • A49681 ACT 0.025 0.125 0.075 1-1/2 30° 4 Uncoated 100
    $25.03
  • A56979 ACT 0.025 0.125 0.075 1-1/2 30° 4 ALTiN 23
    $29.94
  • A49682 ACT 0.026 0.125 0.078 1-1/2 30° 4 Uncoated 24
    $23.34
  • A56980 ACT 0.026 0.125 0.078 1-1/2 30° 4 ALTiN 15
    $28.21
  • A49683 ACT 0.027 0.125 0.081 1-1/2 30° 4 Uncoated 100
    $23.46
  • A56981 ACT 0.027 0.125 0.081 1-1/2 30° 4 ALTiN 40
    $28.29
  • A49684 ACT 0.028 0.125 0.084 1-1/2 30° 4 Uncoated 100
    $16.99
  • A56982 ACT 0.028 0.125 0.084 1-1/2 30° 4 ALTiN 11
    $28.00
  • A49685 ACT 0.029 0.125 0.087 1-1/2 30° 4 Uncoated 34
    $23.46
  • A56983 ACT 0.029 0.125 0.087 1-1/2 30° 4 ALTiN 8
    $28.04
  • A56601 ACT 0.03 0.125 0.045 1-1/2 30° 4 Uncoated 100
    $23.34
  • A56625 ACT 0.03 0.125 0.045 1-1/2 30° 4 ALTiN 23
    $30.47
  • A49686 ACT 0.03 0.125 0.09 1-1/2 30° 4 Uncoated 100
    $23.34
  • A56984 ACT 0.03 0.125 0.09 1-1/2 30° 4 ALTiN 24
    $28.00
  • A56602 ACT 0.031 0.125 0.047 1-1/2 30° 4 Uncoated 100
    $22.06
  • A56626 ACT 0.031 0.125 0.047 1-1/2 30° 4 ALTiN 100
    $28.70
  • A49687 ACT 0.031 0.125 0.093 1-1/2 30° 4 Uncoated 100
    $22.06
  • A56985 ACT 0.031 0.125 0.093 1-1/2 30° 4 ALTiN 100
    $26.31
  • A49688 ACT 0.032 0.125 0.096 1-1/2 30° 4 Uncoated 100
    $22.15
  • A56986 ACT 0.032 0.125 0.096 1-1/2 30° 4 ALTiN 20
    $26.31
  • A49689 ACT 0.033 0.125 0.099 1-1/2 30° 4 Uncoated 25
    $16.00
  • A56987 ACT 0.033 0.125 0.099 1-1/2 30° 4 ALTiN 22
    $19.67
  • A49690 ACT 0.034 0.125 0.102 1-1/2 30° 4 Uncoated 59
    $22.23
  • A56988 ACT 0.034 0.125 0.102 1-1/2 30° 4 ALTiN 11
    $27.09
  • A56603 ACT 0.035 0.125 0.053 1-1/2 30° 4 Uncoated 43
    $15.84
  • A56627 ACT 0.035 0.125 0.053 1-1/2 30° 4 ALTiN 9
    $28.70
  • A49691 ACT 0.035 0.125 0.105 1-1/2 30° 4 Uncoated 72
    $22.06
  • A56989 ACT 0.035 0.125 0.105 1-1/2 30° 4 ALTiN 13
    $26.31
  • A49692 ACT 0.036 0.125 0.108 1-1/2 30° 4 Uncoated 35
    $16.00
  • A56990 ACT 0.036 0.125 0.108 1-1/2 30° 4 ALTiN 12
    $27.05
  • A49693 ACT 0.037 0.125 0.111 1-1/2 30° 4 Uncoated 5
    $16.00
  • A56991 ACT 0.037 0.125 0.111 1-1/2 30° 4 ALTiN 10
    $27.05
  • A49694 ACT 0.038 0.125 0.114 1-1/2 30° 4 Uncoated 7
    $16.00
  • A56992 ACT 0.038 0.125 0.114 1-1/2 30° 4 ALTiN 18
    $19.67
  • A49695 ACT 0.039 0.125 0.117 1-1/2 30° 4 Uncoated 42
    $22.06
  • A56993 ACT 0.039 0.125 0.117 1-1/2 30° 4 ALTiN 14
    $26.31
  • A56604 ACT 0.04 0.125 0.06 1-1/2 30° 4 Uncoated 100
    $22.06
  • A56628 ACT 0.04 0.125 0.06 1-1/2 30° 4 ALTiN 100
    $28.70
  • A49696 ACT 0.04 0.125 0.12 1-1/2 30° 4 Uncoated 100
    $22.06
  • A56994 ACT 0.04 0.125 0.12 1-1/2 30° 4 ALTiN 100
    $26.31
  • A49697 ACT 0.041 0.125 0.123 1-1/2 30° 4 Uncoated 25
    $15.92
  • A56995 ACT 0.041 0.125 0.123 1-1/2 30° 4 ALTiN 20
    $26.31
  • A49698 ACT 0.042 0.125 0.126 1-1/2 30° 4 Uncoated 88
    $15.92
  • A56996 ACT 0.042 0.125 0.126 1-1/2 30° 4 ALTiN 15
    $26.31
  • A49699 ACT 0.043 0.125 0.129 1-1/2 30° 4 Uncoated 34
    $15.92
  • A56997 ACT 0.043 0.125 0.129 1-1/2 30° 4 ALTiN 13
    $26.97
  • A56998 ACT 0.044 0.125 0.132 1-1/2 30° 4 ALTiN Available to Order*
    $19.09
  • A56605 ACT 0.045 0.125 0.068 1-1/2 30° 4 Uncoated 100
    $15.55
  • A56629 ACT 0.045 0.125 0.068 1-1/2 30° 4 ALTiN 100
    $26.39
  • A49701 ACT 0.045 0.125 0.135 1-1/2 30° 4 Uncoated 81
    $21.44
  • A56999 ACT 0.045 0.125 0.135 1-1/2 30° 4 ALTiN 23
    $26.27
  • A49702 ACT 0.046 0.125 0.138 1-1/2 30° 4 Uncoated 67
    $15.55
  • A57000 ACT 0.046 0.125 0.138 1-1/2 30° 4 ALTiN 19
    $25.73
  • A56606 ACT 0.047 0.125 0.071 1-1/2 30° 4 Uncoated 64
    $21.53
  • A56630 ACT 0.047 0.125 0.071 1-1/2 30° 4 ALTiN Available to Order*
    $26.39
  • A49703 ACT 0.047 0.125 0.141 1-1/2 30° 4 Uncoated 16
    $21.44
  • A57001 ACT 0.047 0.125 0.141 1-1/2 30° 4 ALTiN 6
    $25.73
  • A49704 ACT 0.048 0.125 0.144 1-1/2 30° 4 Uncoated 45
    $21.53
  • A57002 ACT 0.048 0.125 0.144 1-1/2 30° 4 ALTiN 10
    $25.73
  • A57003 ACT 0.049 0.125 0.147 1-1/2 30° 4 ALTiN Available to Order*
    $19.09
  • A56607 ACT 0.05 0.125 0.075 1-1/2 30° 4 Uncoated 100
    $15.55
  • A56631 ACT 0.05 0.125 0.075 1-1/2 30° 4 ALTiN 49
    $26.39
  • A49706 ACT 0.05 0.125 0.15 1-1/2 30° 4 Uncoated 15
    $21.44
  • A57004 ACT 0.05 0.125 0.15 1-1/2 30° 4 ALTiN 13
    $25.73
  • A57005 ACT 0.051 0.125 0.153 1-1/2 30° 4 ALTiN 16
    $25.73

* Lead times can vary from 1–10 business days. Call (908) 98-ATLAS or email sales@atlascuttingtools.com for details.
