2 Flute Square End

2 Flute Square End

Atlas Cutting Tools stocks USA precision Solid Carbide End Mills. Buy with confidence and at competitive prices along with same day shipping.

Atlas Solid Carbide 2 Flute End Mill Double End

Solid Carbide End Mill - 2 Flute - 30° Helix - Double End - Fractional

  • Offered in stub, regular, long, and
    extra long length styles
  • TiN coating is used in applications with lower cutting speeds than TiCN and ALTiN but often improves the tool’s lifetime by a factor of three or more. Typically used for in wide range of materials including iron based, hardened steels, and stainless steels.
  • Made in the USA
  • TiCN coating is a general purpose coating that offers improved wear resistance to abrasive, adhesive, or difficult to machine materials such as cast iron, aluminum alloys, steels, copper and more.
  • ALTIN is a high performance coating for milling, tapping and drilling in stainless steels, carbon steels, alloy steels, titanium and cast iron. This coating is extremely heat resistant and can be used with or without coolant.

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com

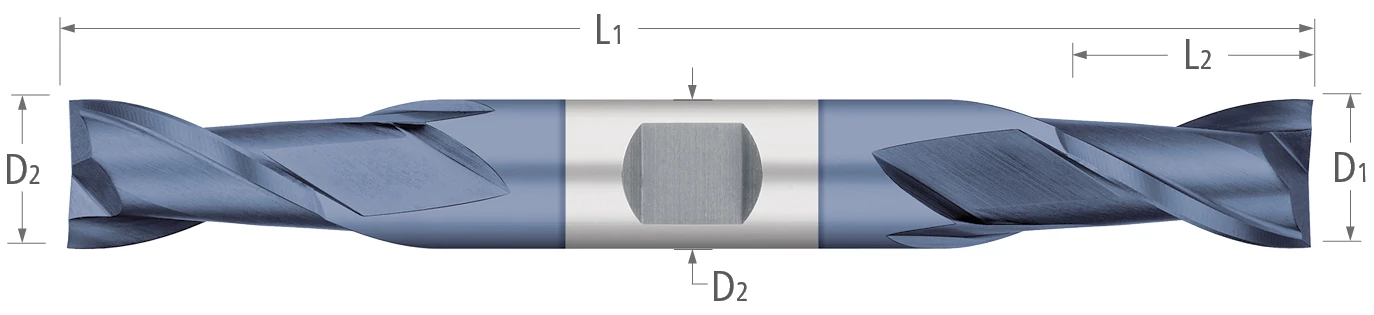

  • Compare SKU Vendor Size (D1) Shank Diameter (D2) Flute Length (L2) Reach (L3) Overall Length (L1) Length Type Corner Radius (R) Included Angle Taper Angle Helix Angle Number of Flutes Weldon Flats Flats Coating In Stock Price Quantity
    A69528 HTC Tool 1/32 1/8 1/16 1-1/2 30° 2 Uncoated Available to Order*
    $9.45
  • A69510 HTC Tool 1/32 1/8 1/16 1-1/2 30° 2 TiN Available to Order*
    $10.71
  • A69492 HTC Tool 1/32 1/8 1/16 1-1/2 30° 2 TiCN Available to Order*
    $10.20
  • A69485 HTC Tool 1/32 1/8 1/16 1-1/2 30° 2 ALTiN Available to Order*
    $10.50
  • A69529 HTC Tool 3/64 1/8 3/32 1-1/2 30° 2 Uncoated Available to Order*
    $9.45
  • A69511 HTC Tool 3/64 1/8 3/32 1-1/2 30° 2 TiN Available to Order*
    $10.62
  • A69493 HTC Tool 3/64 1/8 3/32 1-1/2 30° 2 TiCN Available to Order*
    $10.20
  • A69486 HTC Tool 3/64 1/8 3/32 1-1/2 30° 2 ALTiN Available to Order*
    $10.50
  • A48511 HTC Tool 1/16 1/8 1/8 1-1/2 30° 2 Uncoated Available to Order*
    $8.40
  • A69512 HTC Tool 1/16 1/8 1/8 1-1/2 30° 2 TiN Available to Order*
    $9.34
  • A69494 HTC Tool 1/16 1/8 1/8 1-1/2 30° 2 TiCN Available to Order*
    $9.17
  • A48577 HTC Tool 1/16 1/8 1/8 1-1/2 30° 2 ALTiN Available to Order*
    $9.45
  • A48512 HTC Tool 3/32 1/8 3/16 1-1/2 30° 2 Uncoated Available to Order*
    $7.98
  • A69513 HTC Tool 3/32 1/8 3/16 1-1/2 30° 2 TiN Available to Order*
    $9.24
  • A69495 HTC Tool 3/32 1/8 3/16 1-1/2 30° 2 TiCN Available to Order*
    $8.75
  • A48578 HTC Tool 3/32 1/8 3/16 1-1/2 30° 2 ALTiN Available to Order*
    $9.03
  • A69481 HTC Tool 3/32 3/8 5/16 3 30° 2 Uncoated Available to Order*
    $29.82
  • A69477 HTC Tool 3/32 3/8 5/16 3 30° 2 ALTiN Available to Order*
    $34.02
  • A69530 HTC Tool 7/64 1/8 7/32 1-1/2 30° 2 Uncoated Available to Order*
    $7.77
  • A69514 HTC Tool 7/64 1/8 7/32 1-1/2 30° 2 TiN Available to Order*
    $9.24
  • A69496 HTC Tool 7/64 1/8 7/32 1-1/2 30° 2 TiCN Available to Order*
    $8.57
  • A69487 HTC Tool 7/64 1/8 7/32 1-1/2 30° 2 ALTiN Available to Order*
    $8.82
  • A48513 HTC Tool 1/8 1/8 1/4 1-1/2 30° 2 Uncoated Available to Order*
    $7.56
  • A69515 HTC Tool 1/8 1/8 1/4 1-1/2 30° 2 TiN Available to Order*
    $9.15
  • A69497 HTC Tool 1/8 1/8 1/4 1-1/2 30° 2 TiCN Available to Order*
    $8.38
  • A48579 HTC Tool 1/8 1/8 1/4 1-1/2 30° 2 ALTiN Available to Order*
    $8.61
  • A48423 HTC Tool 1/8 3/8 3/8 3-1/16 30° 2 Uncoated Available to Order*
    $29.40
  • A48434 HTC Tool 1/8 3/8 3/8 3-1/16 30° 2 ALTiN Available to Order*
    $33.60
  • A48514 HTC Tool 5/32 3/16 5/16 2 30° 2 Uncoated Available to Order*
    $11.55
  • A69516 HTC Tool 5/32 3/16 5/16 2 30° 2 TiN Available to Order*
    $12.93
  • A69498 HTC Tool 5/32 3/16 5/16 2 30° 2 TiCN Available to Order*
    $13.85
  • A48580 HTC Tool 5/32 3/16 5/16 2 30° 2 ALTiN Available to Order*
    $14.28
  • A48424 HTC Tool 5/32 3/8 7/16 3-1/8 30° 2 Uncoated Available to Order*
    $28.98
  • A48435 HTC Tool 5/32 3/8 7/16 3-1/8 30° 2 ALTiN Available to Order*
    $33.72
  • A48515 HTC Tool 3/16 3/8 5/16 2 30° 2 Uncoated Available to Order*
    $11.04
  • A69517 HTC Tool 3/16 3/8 5/16 2 30° 2 TiN Available to Order*
    $12.81
  • A69499 HTC Tool 3/16 3/8 5/16 2 30° 2 TiCN Available to Order*
    $13.26
  • A48581 HTC Tool 3/16 3/8 5/16 2 30° 2 ALTiN Available to Order*
    $13.65
  • A48425 HTC Tool 3/16 3/8 1/2 3-1/4 30° 2 Uncoated Available to Order*
    $28.35
  • A48436 HTC Tool 3/16 3/8 1/2 3-1/4 30° 2 ALTiN Available to Order*
    $33.09
  • A48516 HTC Tool 7/32 1/4 3/8 2-1/2 30° 2 Uncoated Available to Order*
    $13.02
  • A69518 HTC Tool 7/32 1/4 3/8 2-1/2 30° 2 TiN Available to Order*
    $15.46
  • A69500 HTC Tool 7/32 1/4 3/8 2-1/2 30° 2 TiCN Available to Order*
    $17.32
  • A48582 HTC Tool 7/32 1/4 3/8 2-1/2 30° 2 ALTiN Available to Order*
    $17.85
  • A48426 HTC Tool 7/32 3/8 9/16 3-1/2 30° 2 Uncoated Available to Order*
    $28.35
  • A48437 HTC Tool 7/32 3/8 9/16 3-1/2 30° 2 ALTiN Available to Order*
    $33.09
  • A48517 HTC Tool 1/4 1/4 1/2 2-1/2 30° 2 Uncoated Available to Order*
    $12.81
  • A69519 HTC Tool 1/4 1/4 1/2 2-1/2 30° 2 TiN Available to Order*
    $15.24
  • A69501 HTC Tool 1/4 1/4 1/2 2-1/2 30° 2 TiCN Available to Order*
    $16.72
  • A48583 HTC Tool 1/4 1/4 1/2 2-1/2 30° 2 ALTiN Available to Order*
    $17.22
  • A48427 HTC Tool 1/4 3/8 5/8 3-1/2 30° 2 Uncoated Available to Order*
    $28.35
  • A48438 HTC Tool 1/4 3/8 5/8 3-1/2 30° 2 ALTiN Available to Order*
    $33.09
  • A69531 HTC Tool 9/32 5/16 1/2 2-1/2 30° 2 Uncoated Available to Order*
    $15.75
  • A69520 HTC Tool 9/32 5/16 1/2 2-1/2 30° 2 TiN Available to Order*
    $18.81
  • A69502 HTC Tool 9/32 5/16 1/2 2-1/2 30° 2 TiCN Available to Order*
    $21.40
  • A69488 HTC Tool 9/32 5/16 1/2 2-1/2 30° 2 ALTiN Available to Order*
    $22.05
  • A48518 HTC Tool 5/16 5/16 1/2 2-1/2 30° 2 Uncoated Available to Order*
    $15.33
  • A69521 HTC Tool 5/16 5/16 1/2 2-1/2 30° 2 TiN Available to Order*
    $18.39
  • A69503 HTC Tool 5/16 5/16 1/2 2-1/2 30° 2 TiCN Available to Order*
    $20.78
  • A48584 HTC Tool 5/16 5/16 1/2 2-1/2 30° 2 ALTiN Available to Order*
    $21.42
  • A48429 HTC Tool 5/16 3/8 3/4 3-1/2 30° 2 Uncoated Available to Order*
    $29.82
  • A48440 HTC Tool 5/16 3/8 3/4 3-1/2 30° 2 ALTiN Available to Order*
    $34.77
  • A48430 HTC Tool 11/32 3/8 3/4 3-1/2 30° 2 Uncoated Available to Order*
    $31.92
  • A48441 HTC Tool 11/32 3/8 3/4 3-1/2 30° 2 ALTiN Available to Order*
    $36.87
  • A48519 HTC Tool 3/8 3/8 9/16 2-1/2 30° 2 Uncoated Available to Order*
    $19.95
  • A69522 HTC Tool 3/8 3/8 9/16 2-1/2 30° 2 TiN Available to Order*
    $23.01
  • A69504 HTC Tool 3/8 3/8 9/16 2-1/2 30° 2 TiCN Available to Order*
    $25.47
  • A48585 HTC Tool 3/8 3/8 9/16 2-1/2 30° 2 ALTiN Available to Order*
    $26.25
  • A48431 HTC Tool 3/8 3/8 3/4 3-1/2 30° 2 Uncoated Available to Order*
    $31.50
  • A48442 HTC Tool 3/8 3/8 3/4 3-1/2 30° 2 ALTiN Available to Order*
    $36.45
  • A48520 HTC Tool 7/16 1/2 9/16 2-3/4 30° 2 Uncoated Available to Order*
    $30.45
  • A69523 HTC Tool 7/16 1/2 9/16 2-3/4 30° 2 TiN Available to Order*
    $35.38
  • A69505 HTC Tool 7/16 1/2 9/16 2-3/4 30° 2 TiCN Available to Order*
    $37.69
  • A48586 HTC Tool 7/16 1/2 9/16 2-3/4 30° 2 ALTiN Available to Order*
    $38.85
  • A48432 HTC Tool 7/16 1/2 7/8 4 30° 2 Uncoated Available to Order*
    $48.30
  • A48443 HTC Tool 7/16 1/2 7/8 4 30° 2 ALTiN Available to Order*
    $53.76
  • A48521 HTC Tool 1/2 1/2 5/8 3 30° 2 Uncoated Available to Order*
    $33.60
  • A69524 HTC Tool 1/2 1/2 5/8 3 30° 2 TiN Available to Order*
    $38.43
  • A69506 HTC Tool 1/2 1/2 5/8 3 30° 2 TiCN Available to Order*
    $38.71
  • A48587 HTC Tool 1/2 1/2 5/8 3 30° 2 ALTiN Available to Order*
    $39.90
  • A48433 HTC Tool 1/2 1/2 1 4 30° 2 Uncoated Available to Order*
    $44.10
  • A48444 HTC Tool 1/2 1/2 1 4 30° 2 ALTiN Available to Order*
    $51.45
  • A69532 HTC Tool 9/16 5/8 11/16 3-1/2 30° 2 Uncoated Available to Order*
    $73.50
  • A69525 HTC Tool 9/16 5/8 11/16 3-1/2 30° 2 TiN Available to Order*
    $69.42
  • A69507 HTC Tool 9/16 5/8 11/16 3-1/2 30° 2 TiCN Available to Order*
    $81.48
  • A69489 HTC Tool 9/16 5/8 11/16 3-1/2 30° 2 ALTiN Available to Order*
    $84.00
  • A69482 HTC Tool 9/16 5/8 1-1/4 5 30° 2 Uncoated Available to Order*
    $81.90
  • A69478 HTC Tool 9/16 5/8 1-1/4 5 30° 2 ALTiN Available to Order*
    $91.35
  • A69533 HTC Tool 5/8 5/8 11/16 3-1/2 30° 2 Uncoated Available to Order*
    $71.40
  • A69526 HTC Tool 5/8 5/8 11/16 3-1/2 30° 2 TiN Available to Order*
    $81.19
  • A69508 HTC Tool 5/8 5/8 11/16 3-1/2 30° 2 TiCN Available to Order*
    $77.41
  • A69490 HTC Tool 5/8 5/8 11/16 3-1/2 30° 2 ALTiN Available to Order*
    $79.80
  • A69483 HTC Tool 5/8 5/8 1-1/2 6 30° 2 Uncoated Available to Order*
    $88.20
  • A69479 HTC Tool 5/8 5/8 1-1/2 6 30° 2 ALTiN Available to Order*
    $97.65
  • A69534 HTC Tool 3/4 3/4 7/8 4 30° 2 Uncoated Available to Order*
    $120.40
  • A69527 HTC Tool 3/4 3/4 7/8 4 30° 2 TiN Available to Order*
    $137.72
  • A69509 HTC Tool 3/4 3/4 7/8 4 30° 2 TiCN Available to Order*
    $138.52
  • A69491 HTC Tool 3/4 3/4 7/8 4 30° 2 ALTiN Available to Order*
    $142.80
  • A69484 HTC Tool 3/4 3/4 1-1/2 6 30° 2 Uncoated Available to Order*
    $170.80
  • A69480 HTC Tool 3/4 3/4 1-1/2 6 30° 2 ALTiN Available to Order*
    $184.80

* Lead times can vary from 1–10 business days. Call (908) 98-ATLAS or email sales@atlascuttingtools.com for details.
