5 Flute - Chipbreaker - Square End

5 Flute - Chipbreaker - Square End

Atlas Cutting Tools stocks USA precision Solid Carbide End Mills. Buy with confidence and at competitive prices along with same day shipping.

Atlas Solid Carbide 5 Flute End Mill Variable Index - Chipbreaker

Solid Carbide End Mill - 5 Flute - 38° Helix - Variable Index - Chipbreaker

  • Variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium.
  • Engineered with chipbreaker
    geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
  • Delivers efficient, chatter-free machining in roughing, profiling, finishing, and slotting applications up to 1x diameter
  • Large core and eccentric relief for improved tool life
  • Post polished ALCRO-Max coating increases edge strength and wear resistance

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com

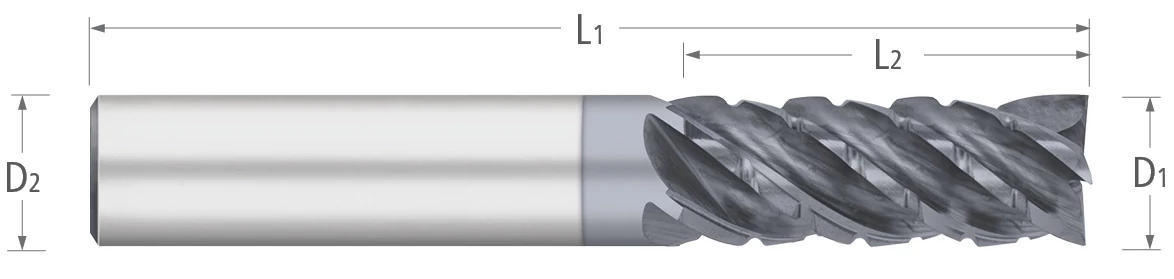

  • Compare SKU Vendor Size (D1) Shank Diameter (D2) Flute Length (L2) Reach (L3) Overall Length (L1) Length Type Corner Radius (R) Included Angle Taper Angle Helix Angle Number of Flutes Weldon Flats Flats Coating In Stock Price Quantity
    A42427 ACT 1/8 1/8 1/2 2 5 No ALCRO-MAX 56
    $20.17
  • A42428 ACT 3/16 3/16 9/16 2 5 No ALCRO-MAX 64
    $23.26
  • A42429 ACT 1/4 1/4 3/4 2-1/2 5 No ALCRO-MAX 6
    $30.06
  • A42442 ACT 1/4 1/4 1-1/8 3 5 No ALCRO-MAX 26
    $34.43
  • A42455 ACT 1/4 1/4 1-1/2 4 5 No ALCRO-MAX 52
    $41.32
  • A42430 ACT 5/16 5/16 13/16 2-1/2 5 No ALCRO-MAX 29
    $39.87
  • A42443 ACT 5/16 5/16 1-1/8 3 5 No ALCRO-MAX 78
    $47.63
  • A42431 ACT 3/8 3/8 1 2-1/2 5 No ALCRO-MAX 35
    $46.80
  • A42444 ACT 3/8 3/8 1-1/4 4 5 No ALCRO-MAX 33
    $64.82
  • A42456 ACT 3/8 3/8 2 4 5 No ALCRO-MAX 100
    $72.78
  • A42432 ACT 1/2 1/2 1 3 5 No ALCRO-MAX 52
    $77.19
  • A42437 ACT 1/2 1/2 1 3 5 Yes ALCRO-MAX 19
    $85.56
  • A42433 ACT 1/2 1/2 1-1/4 3 5 No ALCRO-MAX 21
    $77.19
  • A42438 ACT 1/2 1/2 1-1/4 3 5 Yes ALCRO-MAX 29
    $85.56
  • A42445 ACT 1/2 1/2 1-1/2 4 5 No ALCRO-MAX 24
    $97.23
  • A42450 ACT 1/2 1/2 1-1/2 4 5 Yes ALCRO-MAX 100
    $105.51
  • A42446 ACT 1/2 1/2 2 4 5 No ALCRO-MAX 35
    $108.65
  • A42451 ACT 1/2 1/2 2 4 5 Yes ALCRO-MAX 66
    $116.93
  • A42457 ACT 1/2 1/2 3 6 5 No ALCRO-MAX 83
    $154.25
  • A42463 ACT 1/2 1/2 3 6 5 Yes ALCRO-MAX 89
    $162.57
  • A42434 ACT 5/8 5/8 1-5/8 3-1/2 5 No ALCRO-MAX 9
    $146.83
  • A42439 ACT 5/8 5/8 1-5/8 3-1/2 5 Yes ALCRO-MAX 24
    $158.00
  • A42447 ACT 5/8 5/8 2-1/4 5 5 No ALCRO-MAX 65
    $212.34
  • A42452 ACT 5/8 5/8 2-1/4 5 5 Yes ALCRO-MAX 15
    $223.43
  • A42458 ACT 5/8 5/8 3 6 5 No ALCRO-MAX 23
    $228.05
  • A42464 ACT 5/8 5/8 3 6 5 Yes ALCRO-MAX 17
    $239.22
  • A42435 ACT 3/4 3/4 1-5/8 4 5 No ALCRO-MAX 16
    $203.10
  • A42440 ACT 3/4 3/4 1-5/8 4 5 Yes ALCRO-MAX 42
    $216.71
  • A42448 ACT 3/4 3/4 2-1/4 5 5 No ALCRO-MAX 36
    $256.58
  • A42453 ACT 3/4 3/4 2-1/4 5 5 Yes ALCRO-MAX 8
    $270.19
  • A42459 ACT 3/4 3/4 3 6 5 No ALCRO-MAX 6
    $301.03
  • A42465 ACT 3/4 3/4 3 6 5 Yes ALCRO-MAX 15
    $314.63
  • A42460 ACT 3/4 3/4 4 7 5 No ALCRO-MAX 19
    $499.14
  • A42466 ACT 3/4 3/4 4 7 5 Yes ALCRO-MAX 22
    $512.78
  • A42436 ACT 1 1 2 4 5 No ALCRO-MAX 14
    $395.61
  • A42441 ACT 1 1 2 4 5 Yes ALCRO-MAX 20
    $413.54
  • A42449 ACT 1 1 2-1/4 5 5 No ALCRO-MAX 13
    $440.09
  • A42454 ACT 1 1 2-1/4 5 5 Yes ALCRO-MAX 20
    $458.11
  • A42461 ACT 1 1 3 6 5 No ALCRO-MAX 19
    $512.99
  • A42467 ACT 1 1 3 6 5 Yes ALCRO-MAX 17
    $531.01
  • A42462 ACT 1 1 4-1/4 7 5 No ALCRO-MAX 5
    $759.79
  • A42468 ACT 1 1 4-1/4 7 5 Yes ALCRO-MAX 15
    $777.77
