6 Flute - Chipbreaker - Radius

6 Flute - Chipbreaker - Radius

Atlas Cutting Tools stocks USA precision Solid Carbide End Mills. Buy with confidence and at competitive prices along with same day shipping.

Atlas Solid Carbide 6 Flute End Mill Variable Index Corner Radius - Chipbreaker

Solid Carbide End Mill - 6 Flute - 38° Helix - Variable Index - Corner Radius - Chipbreaker

  • Variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium.
  • Post polished ALCRO-Max coating increases edge strength and wear resistance
  • Corner Radius for increased edge strength
  • Delivers efficient, chatter-free machining in light profiling, High Efficiency Milling (HEM), and finishing applications
  • Large core and eccentric relief for improved tool life
  • Engineered with chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure.

Speeds and Feed Info

Have a question or need help?

Call Customer Service at 908-98-ATLAS or email: Sales@atlascuttingtools.com

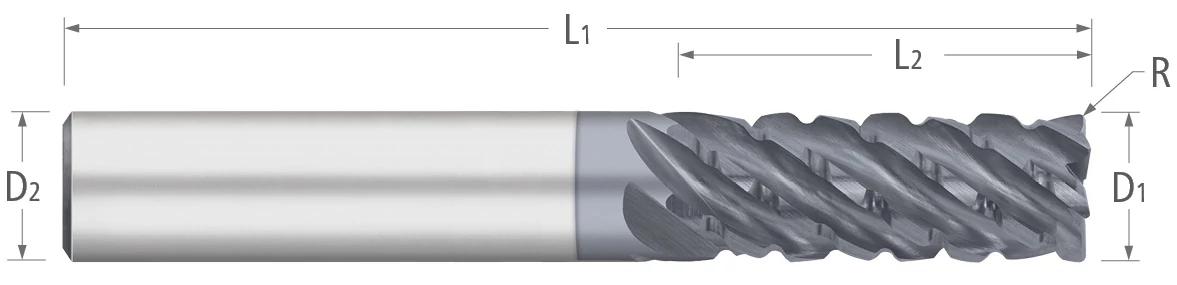

  • Corner Radius (R) Coating Style Flute Length (L2) Material OAL (L1) # of Flutes Shank Dia (D2) Size (D1) Weldon Flats Product Package Qty In Stock Sku Price Quantity
    .015 ALCRO-MAX Corner Radius 3/4 Carbide 2-1/2 6 1/4 1/4 No 1 81
    A42608
    $33.90
  • .015 ALCRO-MAX Corner Radius 1-1/8 Carbide 3 6 1/4 1/4 No 1 82
    A42619
    $39.01
  • .015 ALCRO-MAX Corner Radius 13/16 Carbide 2-1/2 6 5/16 5/16 No 1 87
    A42609
    $44.08
  • .015 ALCRO-MAX Corner Radius 1-1/8 Carbide 3 6 5/16 5/16 No 1 88
    A42620
    $52.86
  • .015 ALCRO-MAX Corner Radius 1 Carbide 2-1/2 6 3/8 3/8 No 1 62
    A42610
    $51.91
  • .015 ALCRO-MAX Corner Radius 1-1/4 Carbide 3 6 3/8 3/8 No 1 84
    A42621
    $71.83
  • .03 ALCRO-MAX Corner Radius 1-1/4 Carbide 3 6 1/2 1/2 No 1 43
    A42611
    $87.41
  • .03 ALCRO-MAX Corner Radius 2 Carbide 4 6 1/2 1/2 No 1 23
    A42622
    $121.30
  • .03 ALCRO-MAX Corner Radius 1-1/4 Carbide 3 6 1/2 1/2 Yes Regular 1 68
    A42615
    $95.70
  • .03 ALCRO-MAX Corner Radius 2 Carbide 4 6 1/2 1/2 Yes Long 1 69
    A42626
    $129.67
  • .03 ALCRO-MAX Corner Radius 1-5/8 Carbide 3-1/2 6 5/8 5/8 No 1 21
    A42612
    $165.58
  • .03 ALCRO-MAX Corner Radius 2-1/4 Carbide 5 6 5/8 5/8 No 1 55
    A42623
    $226.98
  • .03 ALCRO-MAX Corner Radius 1-5/8 Carbide 3-1/2 6 5/8 5/8 Yes Regular 1 3
    A42616
    $176.72
  • .03 ALCRO-MAX Corner Radius 2-1/4 Carbide 5 6 5/8 5/8 Yes Long 1 15
    A42627
    $238.11
  • .06 ALCRO-MAX Corner Radius 1-5/8 Carbide 4 6 3/4 3/4 No 1 13
    A42613
    $219.51
  • .06 ALCRO-MAX Corner Radius 2-1/4 Carbide 5 6 3/4 3/4 No 1 33
    A42624
    $284.33
  • .06 ALCRO-MAX Corner Radius 1-5/8 Carbide 4 6 3/4 3/4 Yes Regular 1 20
    A42617
    $233.08
  • .06 ALCRO-MAX Corner Radius 2-1/4 Carbide 5 6 3/4 3/4 Yes Long 1 23
    A42628
    $297.97
  • .06 ALCRO-MAX Corner Radius 2 Carbide 4 6 1 1 No 1 19
    A42614
    $431.77
  • .06 ALCRO-MAX Corner Radius 2 Carbide 4 6 1 1 Yes Regular 1 18
    A42618
    $449.78
  • .06 ALCRO-MAX Corner Radius 3 Carbide 6 6 1 1 No 1 20
    A42625
    $543.83
  • .06 ALCRO-MAX Corner Radius 3 Carbide 6 6 1 1 Yes Long 1 18
    A42629
    $561.76
